Sprint

SPRINT

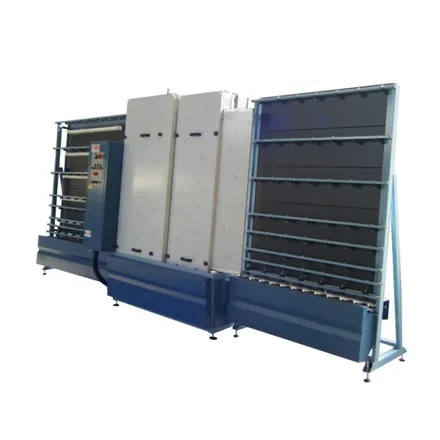

This is a vertical washing machine suitable for every type of glass panels.

 Made exclusively in “open top” version, it allows to wash over-sized glasses. Glass washable minimum dimensions L = 300mm H =150mm. It is composed by a washing / rinsing section completely in stainless steel followed by a large drying section. Both sections of the machine are accessible through removable casing, soundproof in drying area. The mechanical movement is placed at the bottom, below the crankcase. At the same level it is placed the motorization for the brushes, constituted by a single motor. The working speed of the machine is from 1 to 5 m / min

OPTIONAL on demand:
  • closed-circuit with water treatment system (not compatible with applications on production worked glass)
  • Prewashing section
  • Front Brushes for LOW-E
  • Color at your choice


The SPRINT model is available in the following versions:

GLASS MAX HEIGHT THICKNESS NR. OF BRUSHES INLET LENGTH OUTLET LENGTH BRUSH DIAM. Ø (mm) Water Resistance Kw Total power Kw
1300 3-12 4 1400 1400 95 3 9
1500 3-12 2 1400 2000 95 3 9
1500 3-12 4 1400 2000 95 3 9
1500 3-20 4 1400 2000 120 3 11
1600 3-12 4 1400 2000 95 3 9
1600 3-20 4 1400 2000 120 3 11
1800 3-12 4 1400 2000 95 3 11
1800 3-20 4 1400 2000 120 3 11
2000 3-12 4 1400 2000 95 3 14
2000 3-20 4 1400 2000 95 3 14
