ROTATING TABLES

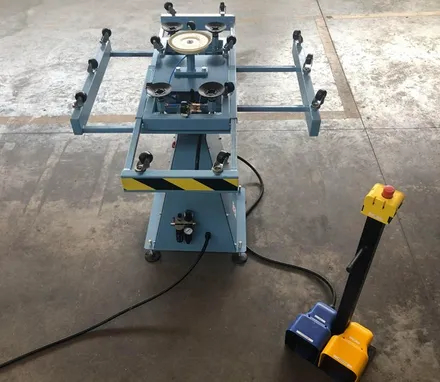

"SPRINT" ROTATING TABLE

 TECHNICAL DATA
  • Rotation type: mechanical with chain gearmotor, with angular positioning at 90 ° -180 ° -270 ° -360 °
  • Not adjustable in height
  • Central plate dimensions: 600 x 350 mm with 4 suction cups, plus central suction cup
  • Maximum extensibility dimensions: 1200x850 mm
  • Central sucker size 200 mm
  • Installed power: 1 kw
  • Minimum dimensions of the workable glass: 300x300 mm
  • Recommended maximum dimensions of the workable glass 2000x2000 mm
  • Minimum size of slabs mm.300x300
  • Maximum sheet thickness mm.50
  • Rotation speed: ADJUSTABLE
  • Weight 100 kg
  • Dimension: 700 mm x 600 mm x 1000 mm

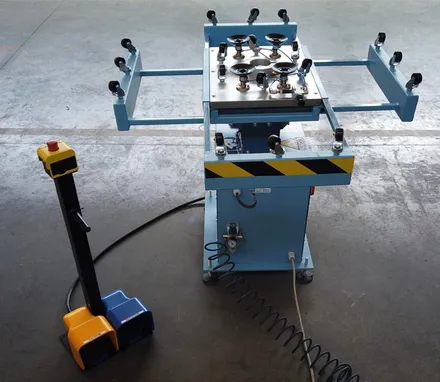

"SUPER" ROTATING TABLE

 TECHNICAL DATA
  • Heavy rotating table to seal the double glass
  • With the pedal it is possible to lock the glass, if it is small the central sucker is used. If the glass is large, the central suction cup is removed and the machine is set up to use the small suction cups.
  • With another pedal it is possible to set the level of the work surface, from 970 to 1170 mm
  • Rotation can be automatic, with 90 ° / 360 ° rotation for any pedal pressure or manual:
  • When you remove the feet, the rotation stops.
  • Power consumption: 0.75 kW
  • Power: 380 V 3p t 50 Hz
  • Pneumatic pressure: 7 bar
  • Dimension: length mm. 700, width mm. 500, height mm. 1100
